Description

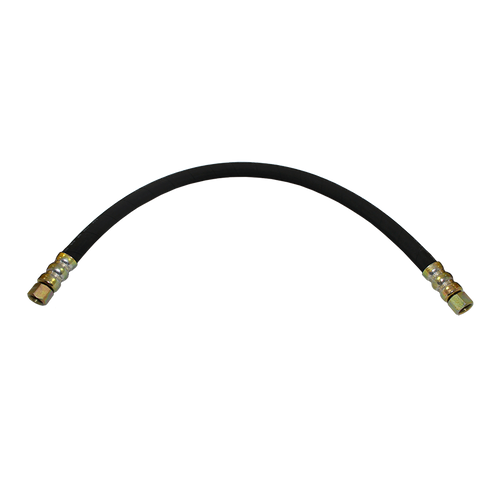

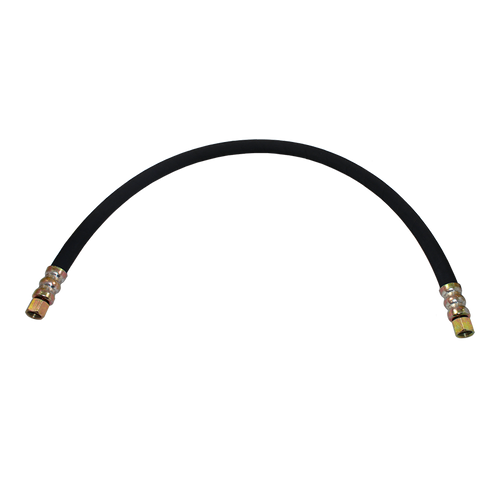

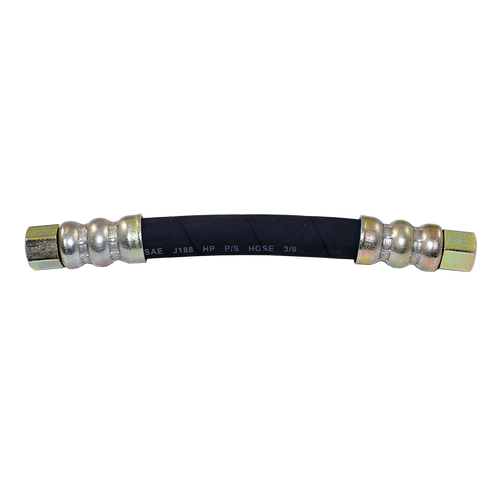

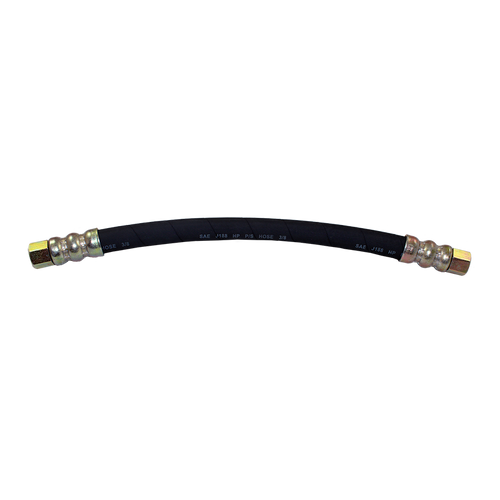

AGS power steering hose assemblies are part of a universal power steering line repair system, so many lines can be repaired right on the vehicle instead of waiting on an expensive replacement. Each 3/8" rubber hose section has female 5/8-18 inverted flare steel fittings on both ends. Choose 6", 12", 18", 24" or 30". The system also offers adapters, tube nuts, line adapters and shielding, and uses KLEDGE-LOK technology.
What's in the box
- 1 hose assembly in the length you choose, 1 per bag (PSRH-606, -612, -618, -624, -630)
Where to use it
Power steering line repairs where a section of line is replaced with hose. Match the fitting thread and flare to the system.
Specifications
| Hose | Rubber, 3/8" |
| ID / OD | 0.4" / 0.76" |
| Wall | 0.2" |
| Fittings | Steel, female 5/8-18 inverted, both ends |
| Fitting ID | 0.26" |
| Burst pressure | 6000 psi |
| Shape | Straight |
| Lengths | 6" PSRH-606 · 12" PSRH-612 · 18" PSRH-618 · 24" PSRH-624 · 30" PSRH-630 |
How to use — 3 easy steps
Cut out the damaged section of line, slide on 5/8-18 tube nuts and form inverted flares.
Thread the tube nuts into the hose's female fittings and tighten with flare-nut wrenches.
Refill and bleed the power steering system, then check for leaks.
