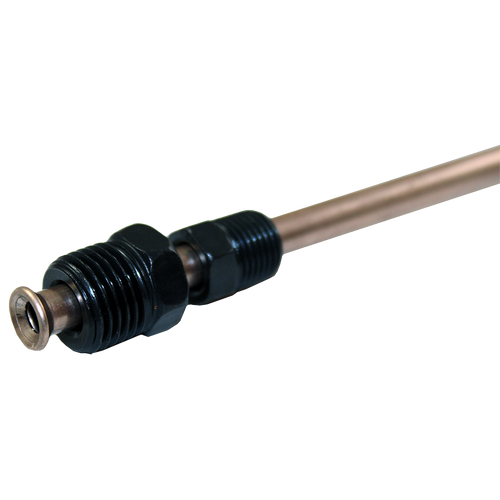

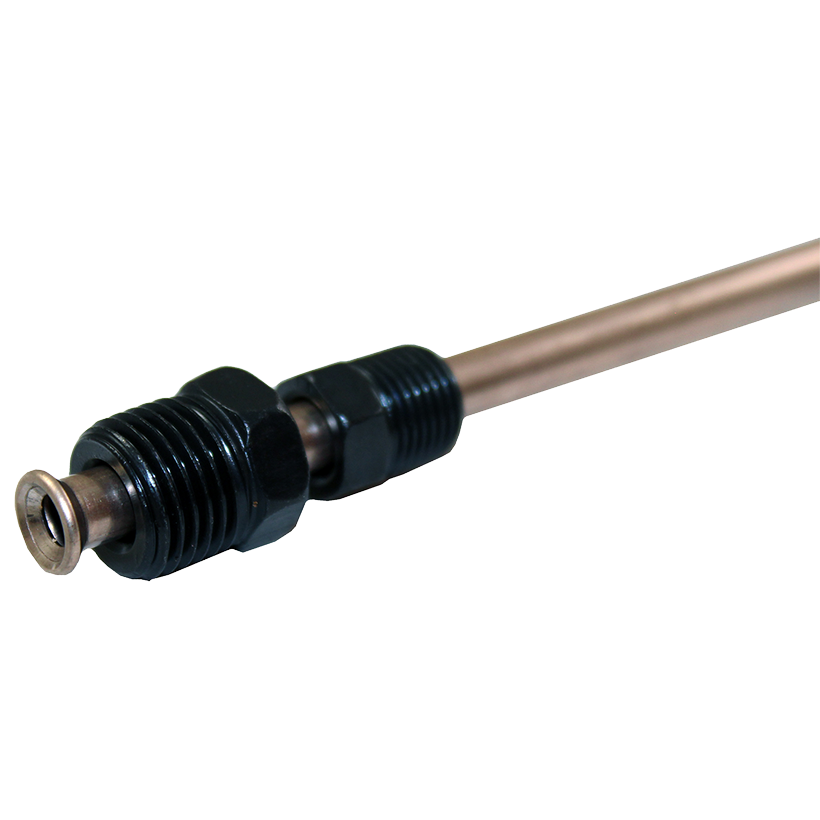

NiCopp Brake Line Adapter, 1/4 x 8 (7/16-24 Inverted)(9/16-18 Inverted)
NiCopp Brake Line Adapter, 1/4 x 8 (7/16-24 Inverted)(9/16-18 Inverted)
Tools

NiCopp Brake Line Adapter, 1/4 x 8 (7/16-24 Inverted)(9/16-18 Inverted)

SKU: CNA-B410

$13.18

1/4" x 8" NiCopp Brake Line Adapter

Description

Adapts 9/16-18 port to a standard 1/4" Domestic brake system. AGS 8" adapter brake lines allow dissimilar connections to be made within the same system. Adapter lines are available in common brake line tube sizes. NiCopp is a nickel-copper alloy brake tubing that meets SAE Standard J1047 and ISO 4038; meeting all international and U.S. requirements for brake tubing. This alloy is approximately 9.2% nickel, 1.4% iron, 0.8% manganese, and 88.6% copper. Under the UNS system, this alloy is designated as UNS C70600. NiCopp therefore has the strength and structural integrity of steel lines but with the added benefit of being much more corrosion resistant. NiCopp is also easier to bend and form than steel tubing. Nickel-copper, commonly referred to as '90-10 copper', has been used on several European vehicle brake systems since the 1970's, including: Volvo, Audi, Porsche, and Aston Martin. NiCopp has been used on hydraulic/fluid transfer systems on vehicles where steel lines and tubing are commonly used. This includes brake, fuel and transmission systems. NiCopp is considered the super-premium brand in brake lines and should be considered where the underbody of the vehicle is subjected to the harshest environments, where the longest life-span for lines is required, and/or where direct OEM replacement is desired. - NiCopp Does Not Rust or Corrode - DOT Approved for Hydraulic Brake Systems - Bends 58% Easier than Steel Tubing - Available in Coils of 25', 50', and 100' - Finished Lines Available for Domestic & Import - Black Oxide Fittings 2X Corrosion Resistance. NiCopp lines and tubing meet the following specifications: SAEJ1047, ISO 4038, SAEJ1650, DIN 74234, BS2871

Specifications

Female to Female: Yes
Fitting Finish: Zinc
Fitting Material: Steel
Male to Female: No
Male to Male: No
Thread Pitch #1: 24 in
Thread Pitch #2: 18 in
Thread Size #1: 7/16 in
Thread Size #2: 9/16 in
Thread Type #1: SAE
Thread Type #2: SAE
