Brass Brake Line Union, 3/8" (5/8-18 Inverted)

SKU: BLU-6B

$4.09

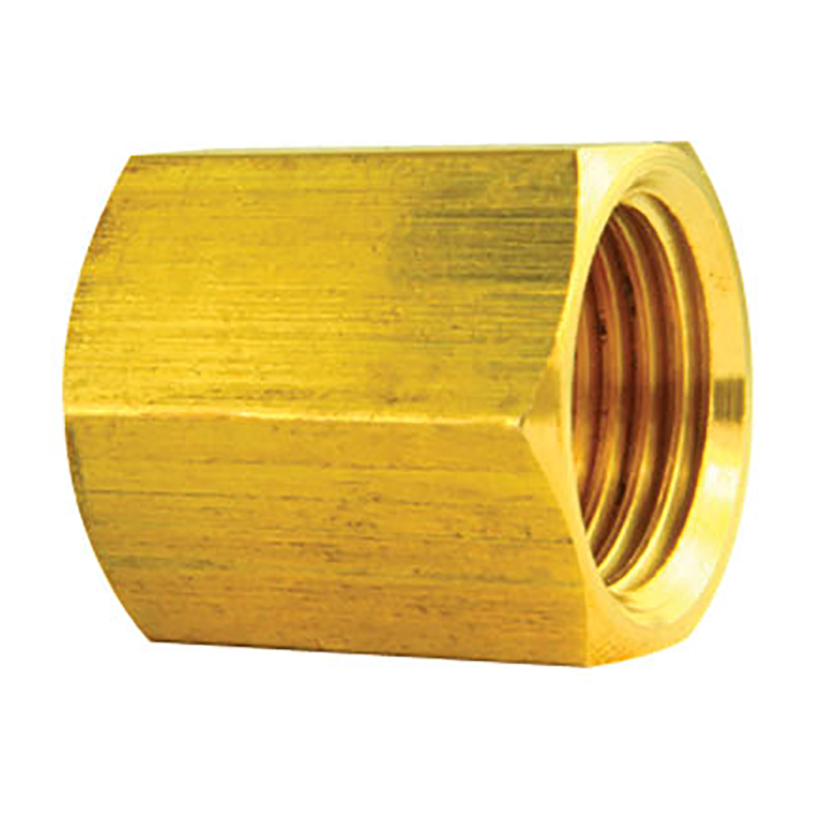

3/8" (5/8-18 Inverted) Brass Brake Line Union

Description

Unions are used to join two brake, fuel, or transmission lines together. This may be needed, for example, in long runs from the dual master cylinder to the rear axle. Match the thread and flare type to the lines being connected. It is important that both flare type and thread match for a leak-proof connection. Use for joining 3/8" fuel and transmission lines.

Specifications

Material: Brass
SAE or Metric: SAE
Thread Diameter: 5/8 - 18 in
Tube Diameter: 3/8 in

Interchanges

Fairview Fittings: 142-6
Raybestos Brake: WBU600
Edelmann: 123600
Papco: DS142-6
FMSI Universal: 3018
NAPA Brakes: 641-3293
CARQUEST: 123600
Weatherhead: 302x6
Coronet: 300-6
Dorman: 490-333
Dynamic: 300E
