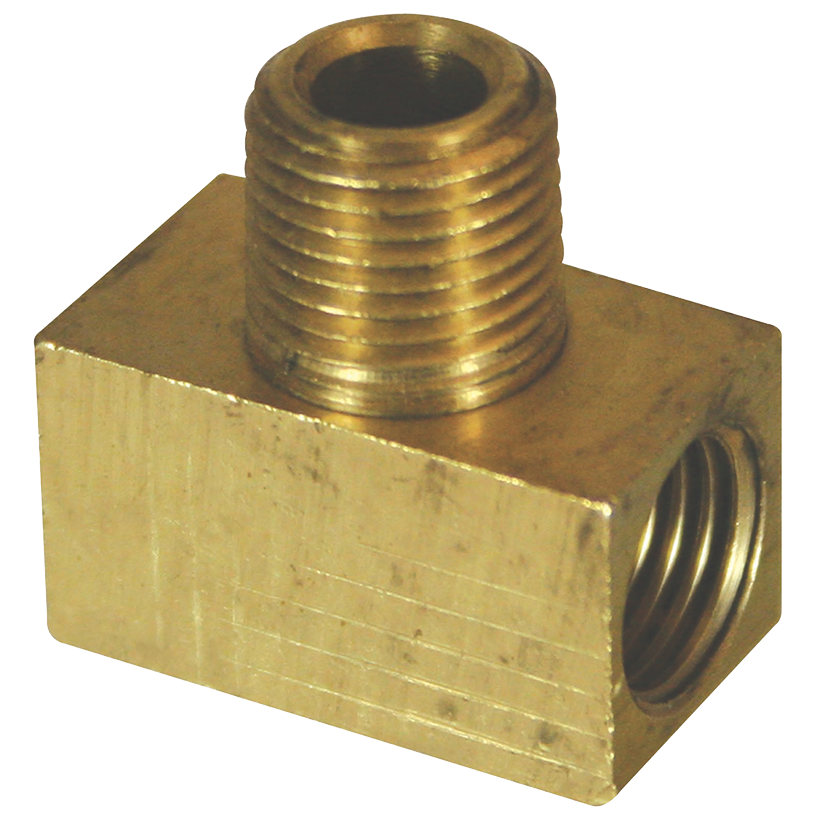

3/8-24 Inverted Female, 1/8-27 NPTF Male - Brass Brake Line Tee

Description

Adapter fittings are generally used to allow connection of standard brake lines to the different sized ports used in dual master cylinders. Simply match the male side of the adapter to the port connection on the dual master cylinder and the female side of the adapter to the brake line connection to be made. Male branch tee for 3/16" brake line.

Specifications

Axis 1 Length: .84 in
Axis 2 Length: .62 in
End 1 Minimum Diameter: 3/16 in
End 1 Type: Threaded
End 2 Minimum Diameter: 1/8 in
End 2 Type: Threaded
End 3 Minimum Diameter: 3/16 in
End 3 Type: Threaded
Material: Brass

Interchanges

Fairview Fittings: 145-3A
Edelmann: 228200
Papco: D600-3A
CARQUEST: 228200
Weatherhead: 602x3
