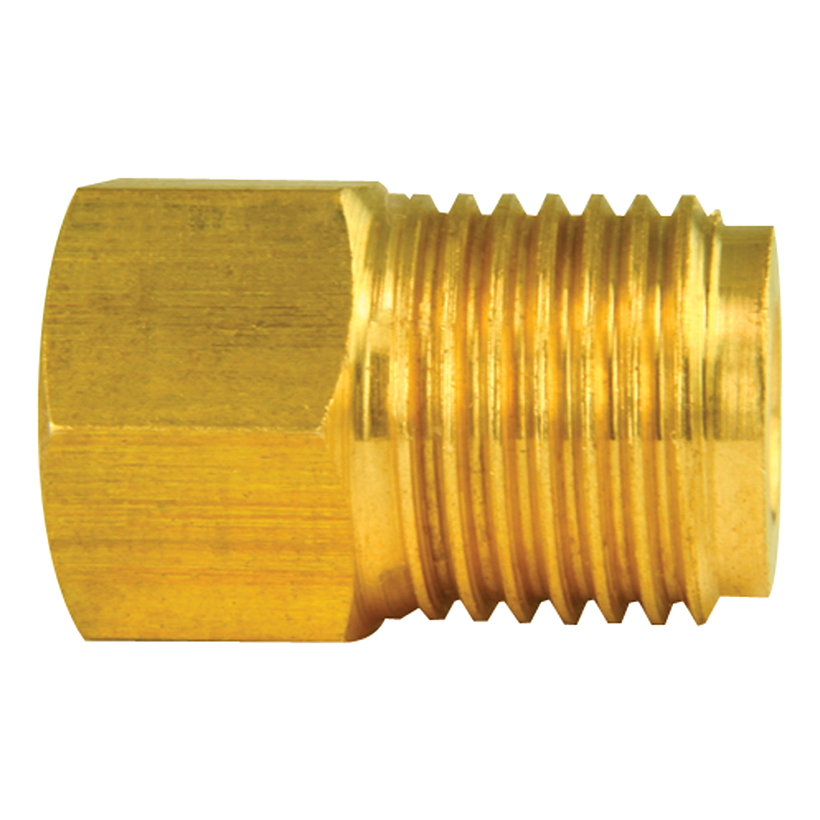

Female(7/16-24 Inverted), Male(9/16-18 Inverted) Brass Adapter

Description

Adapter fittings are generally used to allow connection of standard brake lines to the different sized ports used in dual master cylinders. Simply match the male side of the adapter to the port connection on the dual master cylinder and the female side of the adapter to the brake line connection to be made. Use for adapting a 9/16-18 Inverted port to a 1/4" Domestic brake line.

Specifications

End 1 Type: 7/16 - 24 in
End 2 Type: 9/16 - 18 in
Finish: Zinc
Material: Brass
Thread Type #1: SAE

Interchanges

Fairview Fittings: WH-7908
Raybestos Brake: WLA908
Edelmann: 258403
Papco: D7908
FMSI Universal: 3236
NAPA Brakes: 641-3309
CARQUEST: 258403
Weatherhead: 7908
Dorman: 327908
Dynamic: 7908
