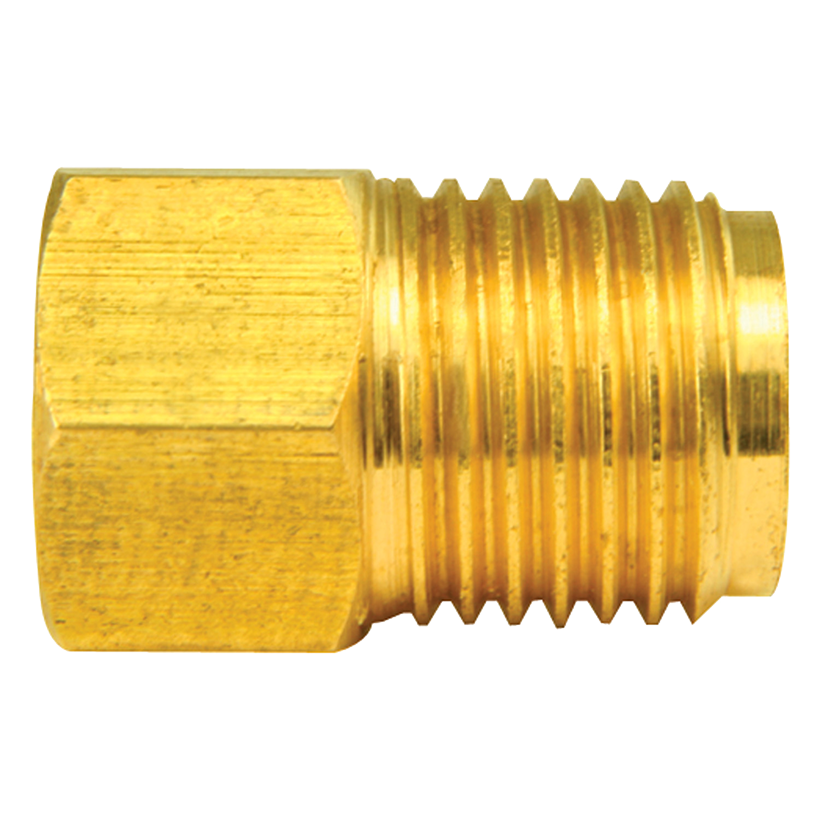

Brass Adapter, Female(3/8-24 Inverted), Male(9/16-18 Inverted)

Female(3/8-24 Inverted), Male(9/16-18 Inverted) Brass Adapter

What This Adapter Does

In plain terms: this fitting lets you connect a brake line that has a 3/8-24 inverted flare tube nut into a port with larger 9/16-18 inverted flare threads. Thread the male 9/16-18 end into the port (for example, on a dual master cylinder), then connect your 3/16" line's 3/8-24 tube nut into the female end — no re-flaring and no line replacement needed.

Description

Adapter fittings are generally used to allow connection of standard brake lines to the different sized ports used in dual master cylinders. Simply match the male side of the adapter to the port connection on the dual master cylinder and the female side of the adapter to the brake line connection to be made. Use for adapting a 9/16-18 Inverted port to a 3/16" Domestic brake line.

Specifications

End 1 Type: 3/8 - 24 in
End 2 Type: 9/16 - 18 in
Finish: Zinc
Material: Brass
Thread Type #1: SAE

Interchanges

Fairview Fittings: WH-7911
Raybestos Brake: WLA911
Edelmann: 258302
Papco: D7911
FMSI Universal: 3237
NAPA Brakes: 641-3311
CARQUEST: 258302
Weatherhead: 7911
Dynamic: 791
