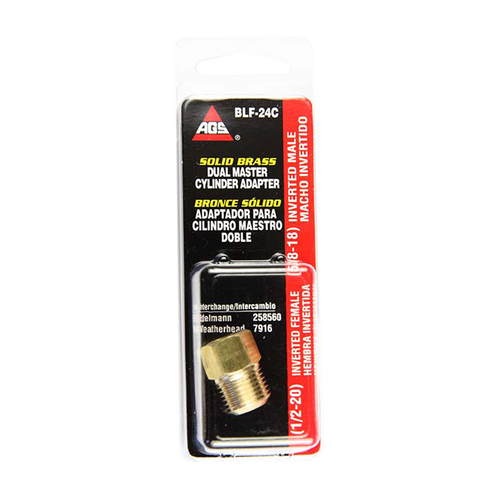

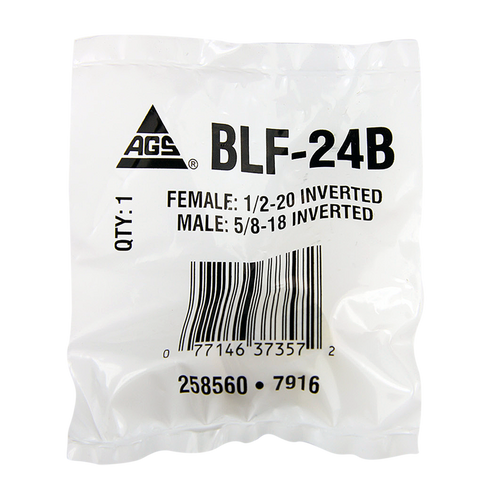

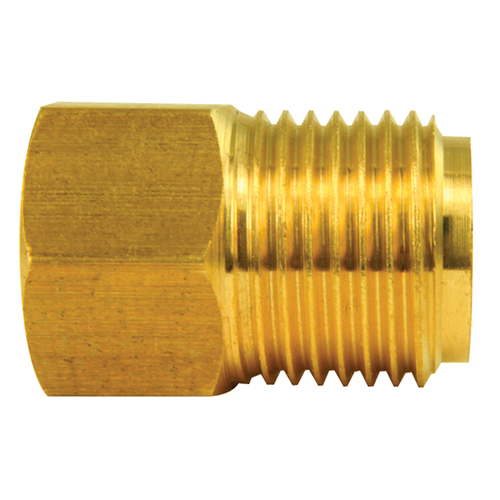

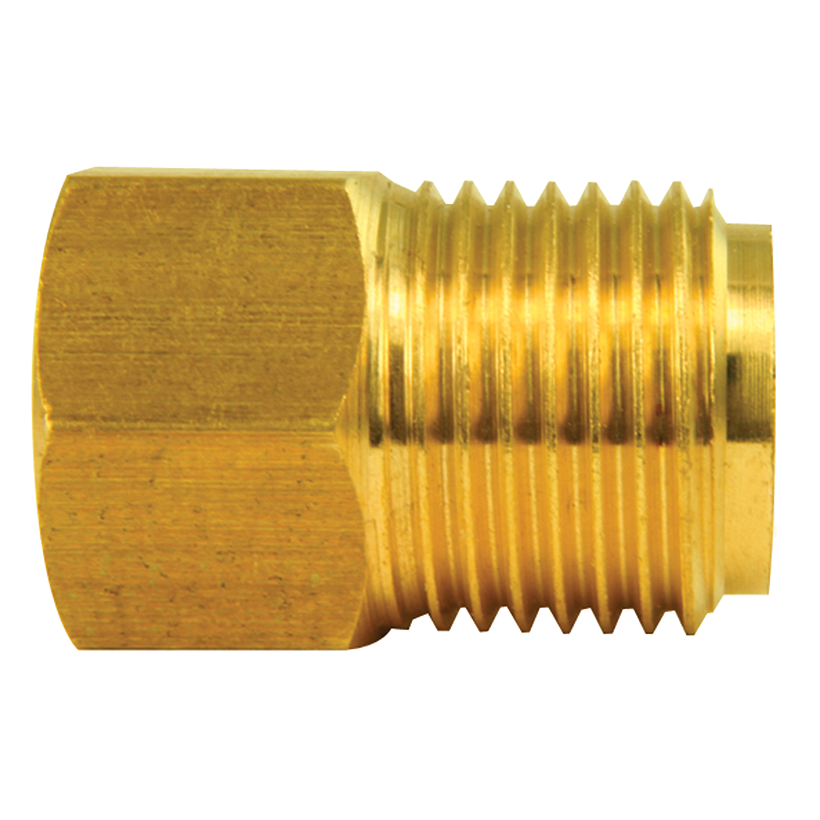

Female(1/2-20 Inverted), Male(5/8-18 Inverted) Brass Adapter

Description

Adapter fittings are generally used to allow connection of standard brake lines to the different sized ports used in dual master cylinders. Simply match the male side of the adapter to the port connection on the dual master cylinder and the female side of the adapter to the brake line connection to be made. Use for adapting a 5/8-18 Inverted port to a 5/16" Domestic fuel line.

Specifications

End 1 Type: 1/2 - 20 in
End 2 Type: 5/8 - 18 in
Finish: Zinc
Material: Brass
Thread Type #1: SAE

Interchanges

Raybestos Brake: WLA916
Edelmann: 258560
Papco: D7916
NAPA Brakes: 641-3308
CARQUEST: 258560
Weatherhead: 7916
Coronet: 212-39
Dorman: 27846
Dynamic: 7916
FMSI Universal: 3418
