2003-2009 Pontiac Vibe, Toyota Corolla +2 More Front Right Rubber Brake Hose | AGS-KT30122
SKU: AGS-KT30122

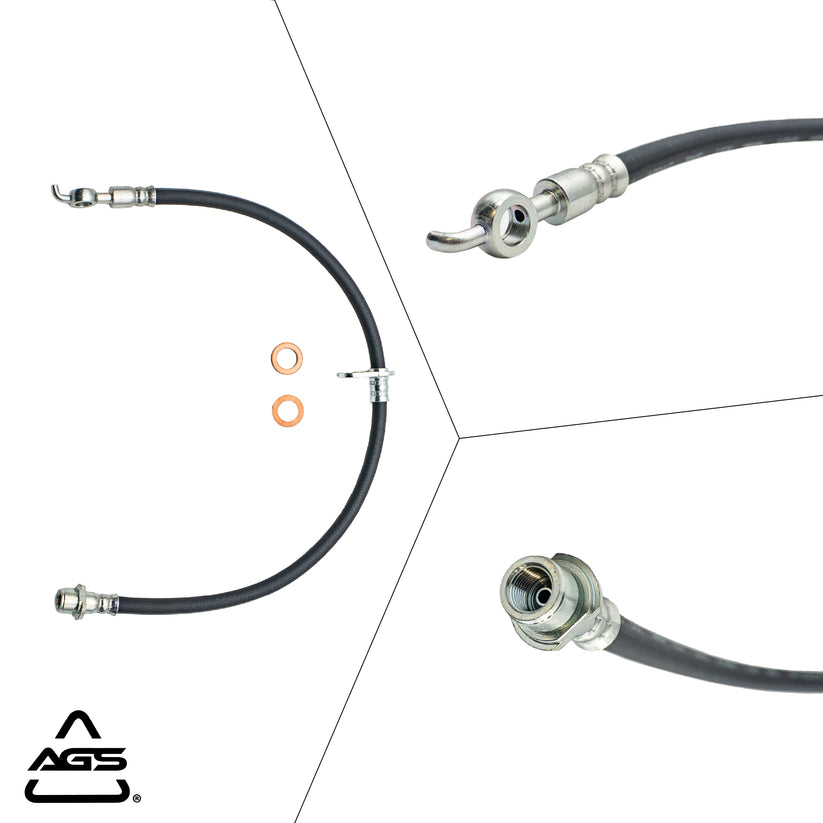

The AGS AGS-KT30122 is a premium rubber brake hydraulic hose engineered as a direct-fit replacement for 4 vehicle applications including the Pontiac Vibe and Toyota Corolla, Front Right position. Manufactured to OE specifications using DOT-approved and durable EPDM construction, this brake hose delivers reliable hydraulic performance, corrosion resistance, and a precise factory fit for confident installation.
Key Features & Benefits
- DOT-approved for road use and federal compliance
- EPDM hose construction for flexibility, durability, and chemical resistance
- Treated Steel fittings on both ends for corrosion resistance
- OE-quality replacement — direct fit with factory mounting points
- Each hose is 100% pressure tested for leaks
- Engineered to OEM hydraulic standards
- Crush washers included for leak-free installation
- Backed by AGS quality assurance from a 70+ year automotive aftermarket leader
Vehicle Fitment
This brake hose is engineered to fit the following vehicle applications:
| Year | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2003 | Pontiac | Vibe | — | Front Right |
| 2004 | Pontiac | Vibe | — | Front Right |
| 2005 | Pontiac | Vibe | — | Front Right |
| 2006 | Pontiac | Vibe | — | Front Right |
| 2007 | Pontiac | Vibe | — | Front Right |
| 2008 | Pontiac | Vibe | — | Front Right |
| 2003 | Toyota | Corolla | — | Front Right |
| 2004 | Toyota | Corolla | — | Front Right |
| 2005 | Toyota | Corolla | — | Front Right |
| 2006 | Toyota | Corolla | — | Front Right |
| 2007 | Toyota | Corolla | — | Front Right |
| 2008 | Toyota | Corolla | — | Front Right |
| 2003 | Toyota | Matrix | — | Front Right |
| 2004 | Toyota | Matrix | — | Front Right |
| 2005 | Toyota | Matrix | — | Front Right |
| 2006 | Toyota | Matrix | — | Front Right |
| 2007 | Toyota | Matrix | — | Front Right |
| 2008 | Toyota | Matrix | — | Front Right |
| 2003 | Toyota | Prius | — | Front Right |
| 2004 | Toyota | Prius | — | Front Right |
| 2005 | Toyota | Prius | — | Front Right |
| 2006 | Toyota | Prius | — | Front Right |
| 2007 | Toyota | Prius | — | Front Right |
| 2008 | Toyota | Prius | — | Front Right |
| 2009 | Toyota | Prius | — | Front Right |
About AGS Company
AGS Company Automotive Solutions has been a trusted name in the automotive aftermarket for over 70 years, manufacturing high-quality brake, fluid, and lubrication products engineered in the USA. Every AGS rubber brake hose is designed to meet or exceed OE specifications, rigorously tested, and backed by industry-leading quality assurance. Choose AGS for confident installation, dependable performance, and long service life.
⚠ California Proposition 65 Warning: WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Specifications
| Hose Material | EPDM |
|---|---|
| Outer Sleeve Material | EPDM |
| Outside Diameter (mm) | 10.5 |
| Overall Length (in) | 24.125 |
| Overall Length (mm) | 612 |
| Axis 1 Length (in) | 24.13 |
| End 1 Fitting Material | Treated Steel |
| End 1 Fitting Type | Banjo |
| End 1 Thread Size (mm) | 10 |
| End 2 Fitting Material | Treated Steel |
| End 2 Fitting Type | Female |
| Crush Washers Included | Yes |
| Mounting Bracket Included | No |
| DOT Approved | Yes |
Cross-Reference / Replaces These Part Numbers
The AGS-KT30122 is a direct cross-reference for the following replacement brake hose part numbers:
| Brand | Part Number |
|---|---|
| Dorman First Stop | H620639 |
| Raybestos | BH381673 | BH382422 |
| AC Delco | 176-1318 | 18J4302 |
| Sunsong | 2204280 | 2204658 |
| Wagner | BH141420 | F141420 |
| Centric Parts | 150.44079 |
| Bendix | 79122 |
| NAPA BRAKES | UP381673 |
| Beck/Arnley | 073-1881 |
| Alltech Automotive | 611610 |
| Coni-Seal | BH418260 |
| DFC Brake Hoses - Archived | 350-76058 |
| General Motors | 88971248 |
| Norflex | NF382422 |
| Toyota | 9008094136 | 9094702C47 | 9094702D81 | 9094702F17 |
