Confirmed fit
Verified interchange — replaces your OE & aftermarket part
Match your original part number — or the competitor number you're replacing — to the list below. If it's here, this hose is a confirmed direct-fit replacement.
| Brand | Part Number |
|---|---|
| Dorman First Stop | H620686 |
| Raybestos | BH382841 |
| Sunsong | 2204843 |
| Wagner | BH143010 | F143010 |
| Centric Parts | 150.45335 |
| NAPA BRAKES | UP609695 |
| Alltech Automotive | 612084 |
| Coni-Seal | BH418430 |
| DFC Brake Hoses - Archived | 350-80084 |
| Mazda | BP4L43980D | BP4L43980E |
| Norflex | NF382841 |
Vehicle fitment
Confirm it fits your vehicle
| Year | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2004 | Mazda | 3 | — | Rear Left |
| 2004 | Mazda | 3 | — | Rear Right |
| 2005 | Mazda | 3 | — | Rear Left |
| 2005 | Mazda | 3 | — | Rear Right |
| 2006 | Mazda | 3 | — | Rear Left |
| 2006 | Mazda | 3 | — | Rear Right |
| 2007 | Mazda | 3 | — | Rear Right |
| 2007 | Mazda | 3 | — | Rear Left |
| 2008 | Mazda | 3 | — | Rear Left |
| 2008 | Mazda | 3 | — | Rear Right |
| 2009 | Mazda | 3 | — | Rear Left |
| 2009 | Mazda | 3 | — | Rear Right |
| 2010 | Mazda | 3 | — | Rear Left |
| 2010 | Mazda | 3 | — | Rear Right |
| 2011 | Mazda | 3 | — | Rear Left |
| 2011 | Mazda | 3 | — | Rear Right |
| 2012 | Mazda | 3 | — | Rear Left |
| 2012 | Mazda | 3 | — | Rear Right |
| 2013 | Mazda | 3 | — | Rear Left |
| 2013 | Mazda | 3 | — | Rear Right |
Scroll to see all applications. Always confirm fitment with your VIN before ordering.
At a glance
Specifications
| Hose Material | EPDM |
|---|---|
| Outer Sleeve Material | EPDM |
| Outside Diameter (mm) | 10.5 |
| Overall Length (in) | 16.125 |
| Overall Length (mm) | 410 |
| Axis 1 Length (in) | 16.13 |
| End 1 Fitting Material | Treated Steel |

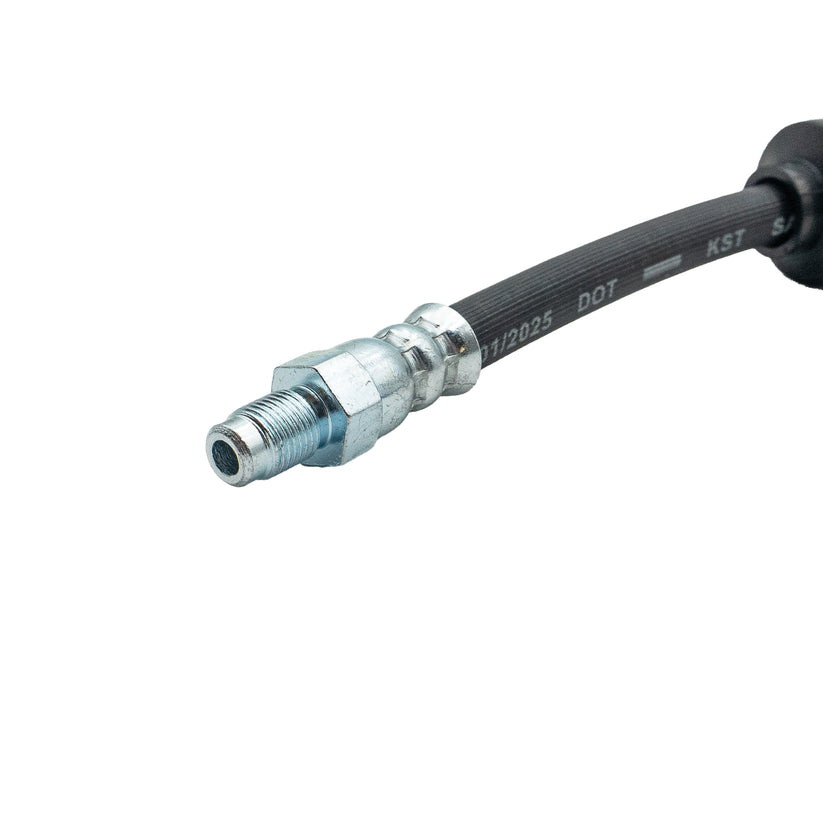

| End 1 Fitting Type | Male |
| End 1 Thread Size (mm) | M10X1 |
| End 2 Fitting Material | Treated Steel |

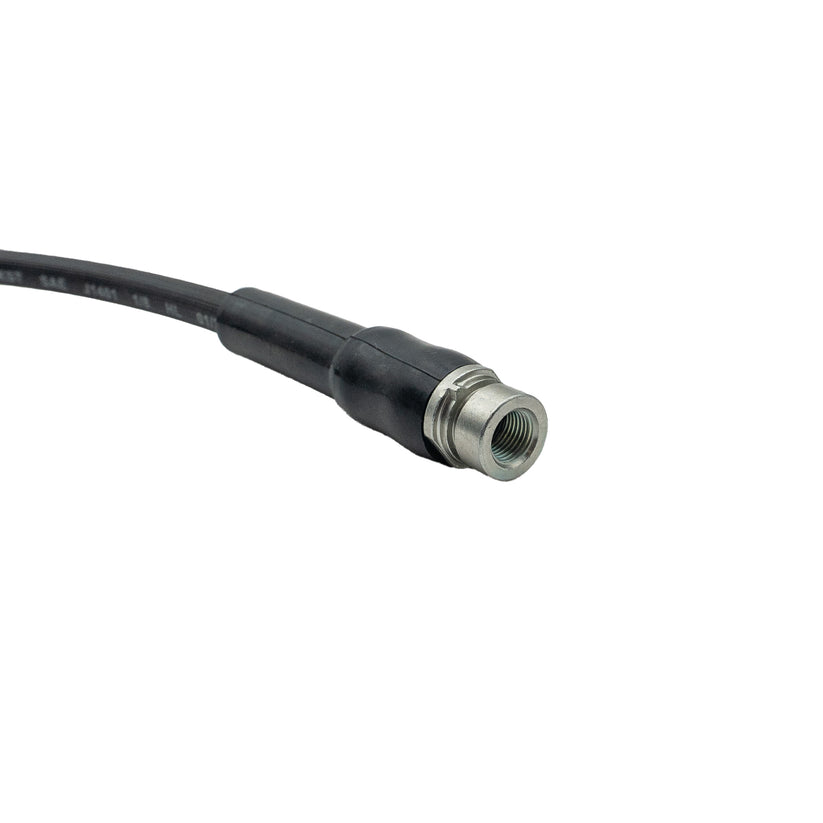

| End 2 Fitting Type | Female |
| Crush Washers Included | No |
| Mounting Bracket Included | No |
| DOT Approved | Yes |
The details
Description

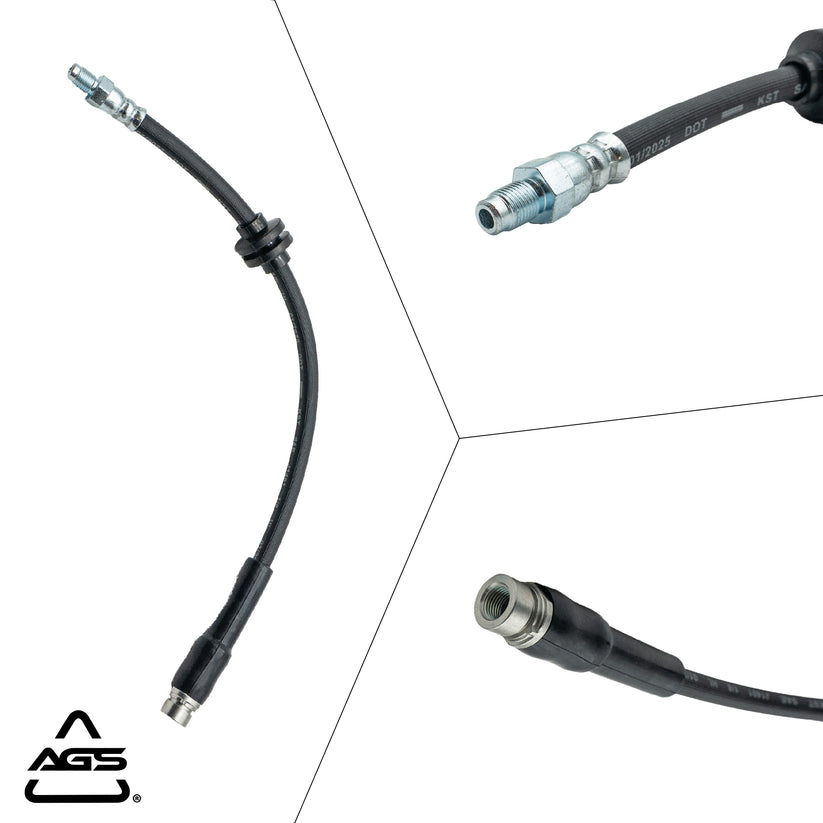

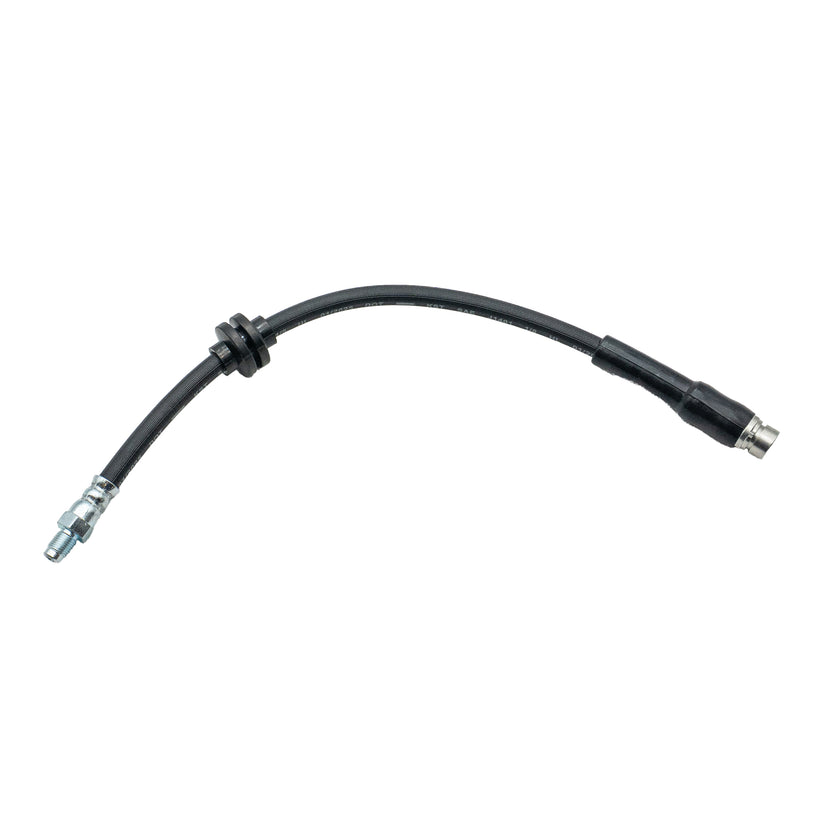

The AGS AGS-KT40249 is a premium rubber brake hydraulic hose engineered as a direct-fit replacement for the 2004-2013 Mazda 3, Rear position. Manufactured to OE specifications using DOT-approved and durable EPDM construction, this brake hose delivers reliable hydraulic performance, corrosion resistance, and a precise factory fit for confident installation.
Key Features & Benefits
- DOT-approved for road use and federal compliance
- EPDM hose construction for flexibility, durability, and chemical resistance
- Treated Steel fittings on both ends for corrosion resistance
- OE-quality replacement — direct fit with factory mounting points
- Each hose is 100% pressure tested for leaks
- Engineered to OEM hydraulic standards
- Backed by AGS quality assurance from a 70+ year automotive aftermarket leader
