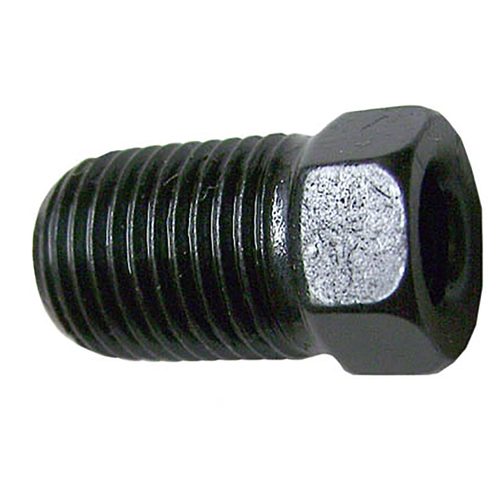

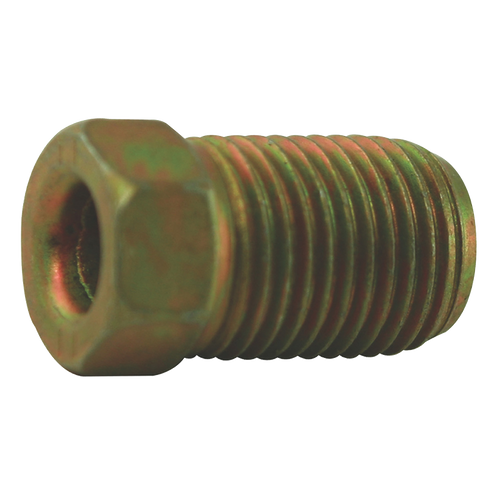

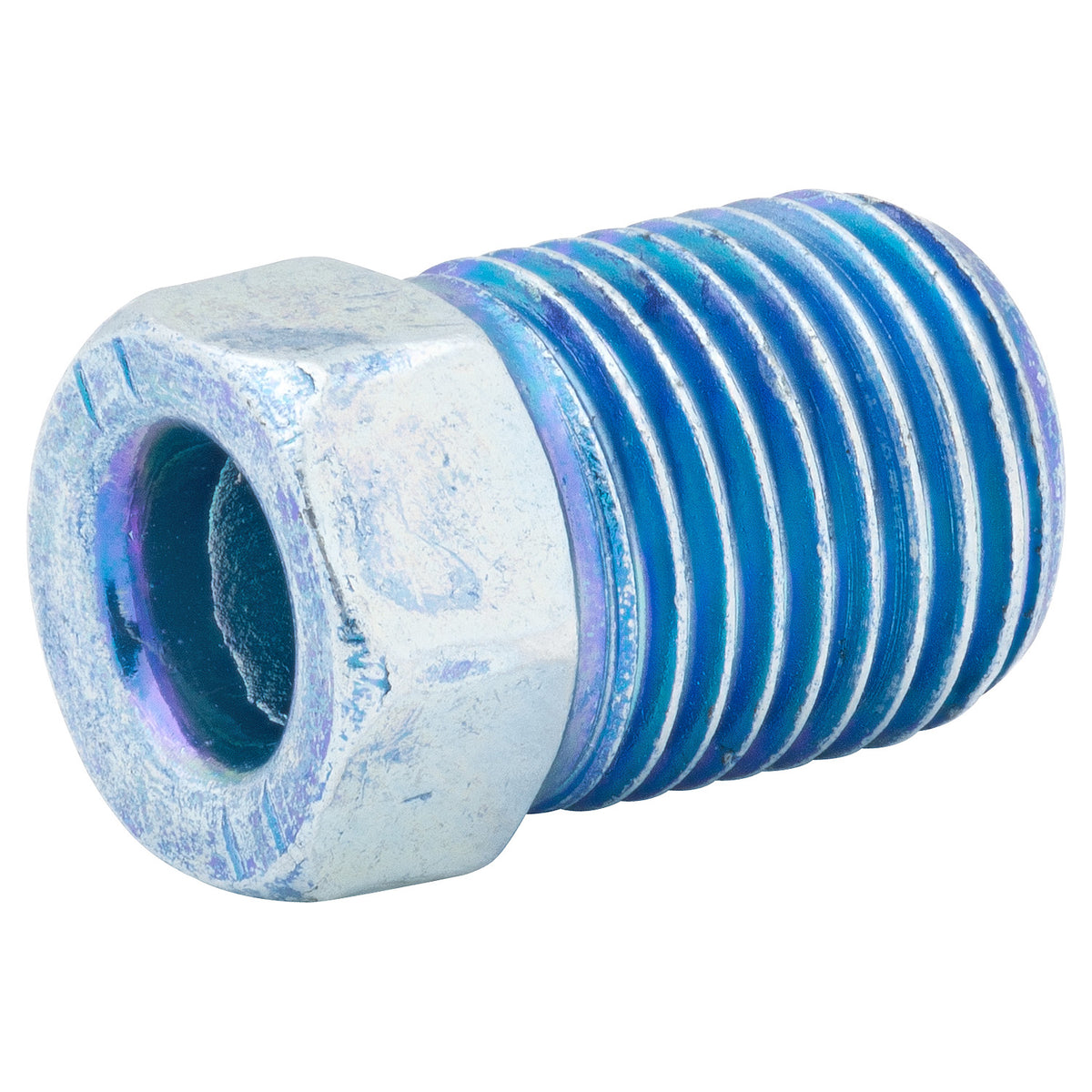

3/16" (M10x1.0 Inverted) Steel Tube Nut

Description

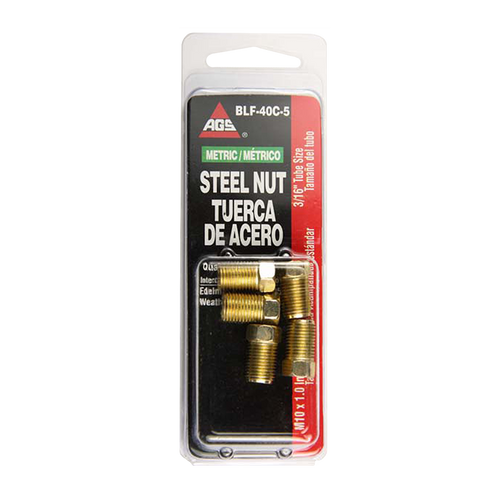

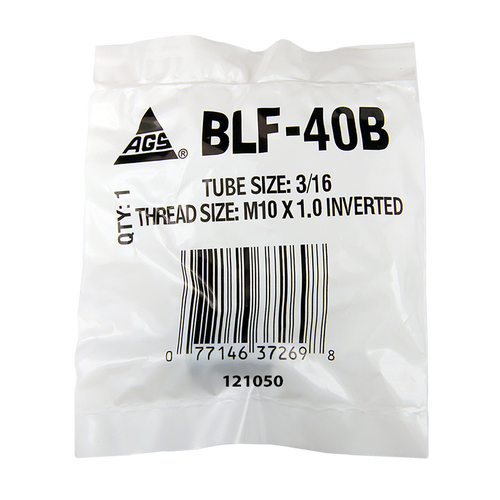

AGS Fittings are comprised of Tube Nuts, Unions (Couplers), and Adapters; used primarily in the automotive hydraulic braking, fuel, and transmission systems. Fittings are offered in a variety of packaging options, including: retail clam-shells, bulk boxed, and plastic tray assortments. Automotive hydraulic brake fittings are formed to work with either SAE Inverted Double Flare (Domestic and Japanese vehicles) or ISO Bubble Flare (European and British vehicles). In either case, the fitting (whether a Tube Nut, Union, or Adapter) must be selected to match the end form of the tube or port it will be mating to or a proper seal will not be possible. Use for 3/16" Japanese brake lines.

Specifications

Finish: Zinc
Material: Steel
Thread Diameter: 10 X 1.0 mm
Thread Type #1: Metric

Interchanges

Fairview Fittings: SJ141-3
Papco: MA300
FMSI Universal: 3043
NAPA Brakes: 641-3320
Dorman: 490-711
Dynamic: 7800/7951
SUR&R Auto Parts: 205/210/270
FMSI Universal: 3411
FMSI Universal: 3417
FMSI Universal: 3449
