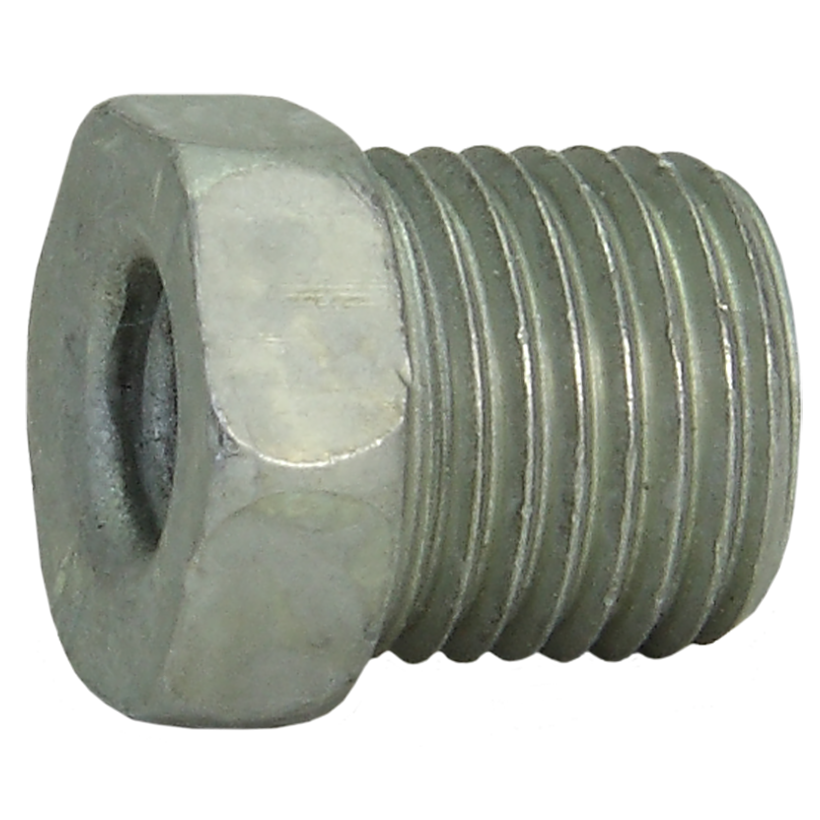

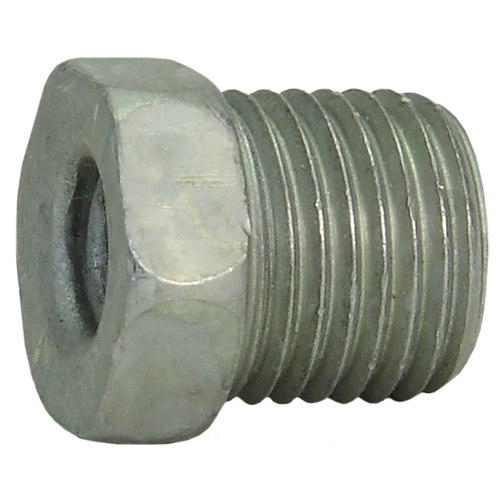

1/4" (1/2-20 Inverted) Steel Tube Nut

Description

AGS Fittings are comprised of Tube Nuts, Unions (Couplers), and Adapters; used primarily in the automotive hydraulic braking, fuel, and transmission systems. Fittings are offered in a variety of packaging options, including retail clam shells, bulk boxed, and plastic tray assortments. Automotive hydraulic brake fittings are formed to work with either SAE Inverted Double Flare (Domestic and Japanese vehicles) or ISO Bubble Flare (European and British vehicles). In either case, the fitting (whether a Tube Nut, Union, or Adapter) must be selected to match the end form of the tube or port it will be mating to, or a proper seal will not be possible. Use for 1/4" Domestic adapter brake lines.

Specifications

Finish: Zinc
Material: Steel
Thread Diameter: 1/2 - 20 in
Thread Type #1: SAE

Interchanges

Fairview Fittings: S141-4-1/2
Edelmann: 12045
FMSI Universal: 3026
NAPA Brakes: 641-3324
CARQUEST: 121045
Dorman: 490-305
Dynamic: 7959
SUR&R Auto Parts: BR-1650
