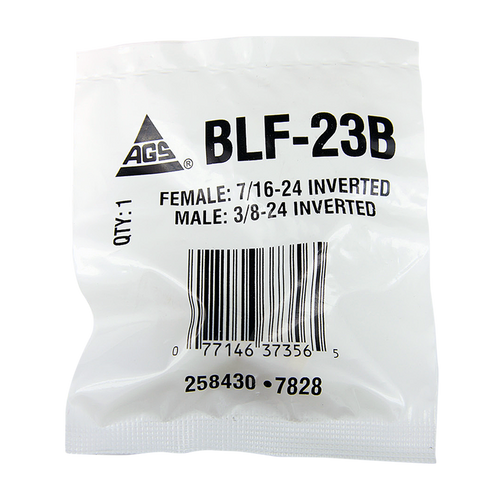

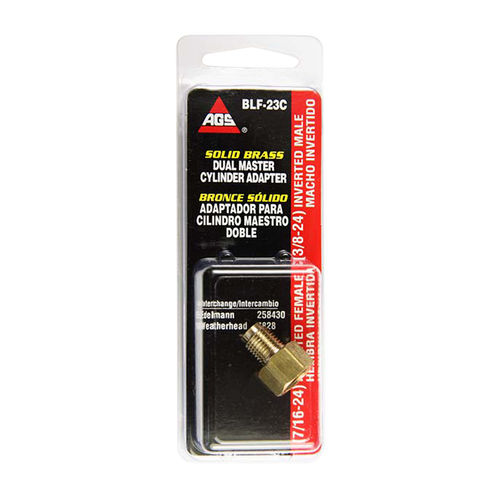

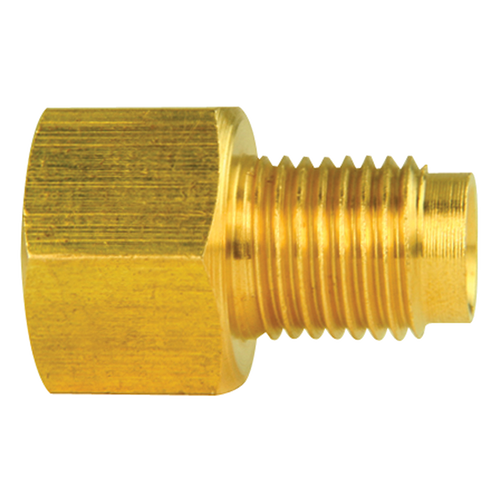

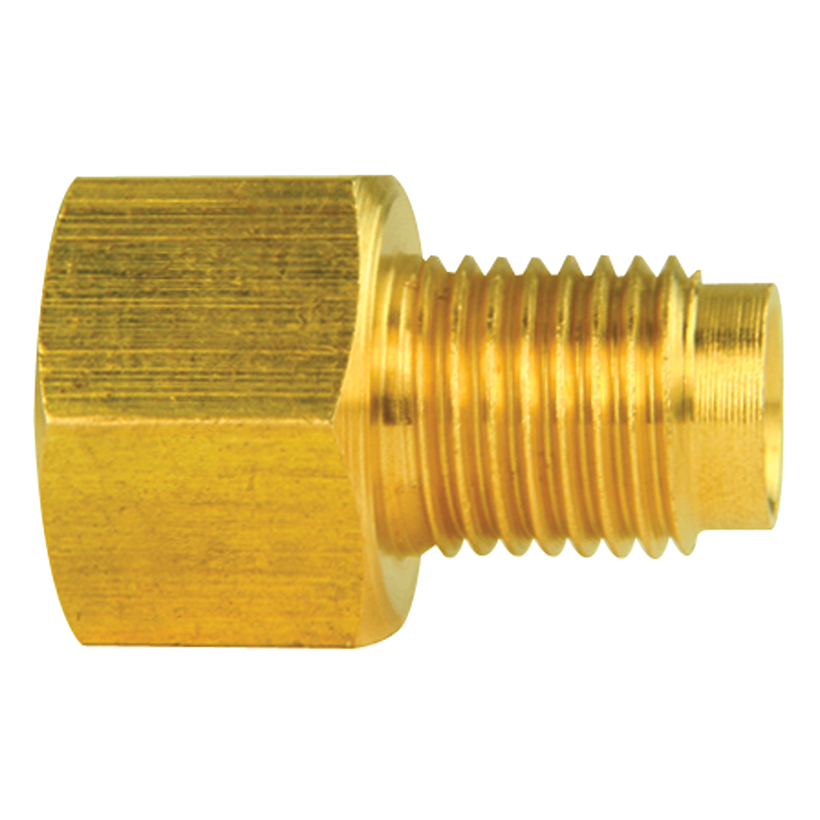

Female(7/16-24 Inverted), Male(3/8-24 Inverted) Brass Adapter

Description

Adapter fittings are generally used to allow connection of standard brake lines to the different sized ports used in dual master cylinders. Simply match the male side of the adapter to the port connection on the dual master cylinder and the female side of the adapter to the brake line connection to be made. Use for adapting a 3/8-24 Inverted port to a 1/4" Domestic brake line.

Specifications

End 1 Type: 7/16 - 24 in
End 2 Type: 3/8 - 24 in
Finish: Zinc
Material: Brass
Thread Type #1: SAE

Interchanges

Raybestos Brake: WLA828
Edelmann: 258430
Papco: D7828
NAPA Brakes: 641-3307
CARQUEST: 258430
Weatherhead: 7828
Coronet: 212-3920
Dorman: 327828
Dynamic: 7828
FMSI Universal: 3235
